Finally Back In The Shop

Post by BrokenolMarine » Sun Feb 13, 2022 5:29 pm

:D :lol: :P ;)

I have been planning to get back in my woodshop for several weeks now as the work in Physical Therapy over the last year has been paying off. I have made it to the point that I can almost completely close the left hand, and that most movement is "Almost" pain free. I have moved from Physical Therapy to Occupational Therapy. This means they have me doing things like screwing nuts on fixed bolts, and putting pipe fittings together to improve manual dexterity. I told the therapist that I wanted to get back to work in the woodshop and he said to "Use my own judgement" as to what would be safe at this point. :? "Ah... isn't that what got me here in the first place...?"

I thought he was going to stroke out.... :twisted:

What I did was get back to work on the knives that have been sitting on the bench for nearly a year. I HAD been out to the shop once, about two months ago, and did some sanding on the three knives, ONE grit level belt worth, maybe thirty minutes, using the left hand only as a guide. This put me at the point where I needed to put the brass pins in place. I stopped, not trusting myself to do the work.

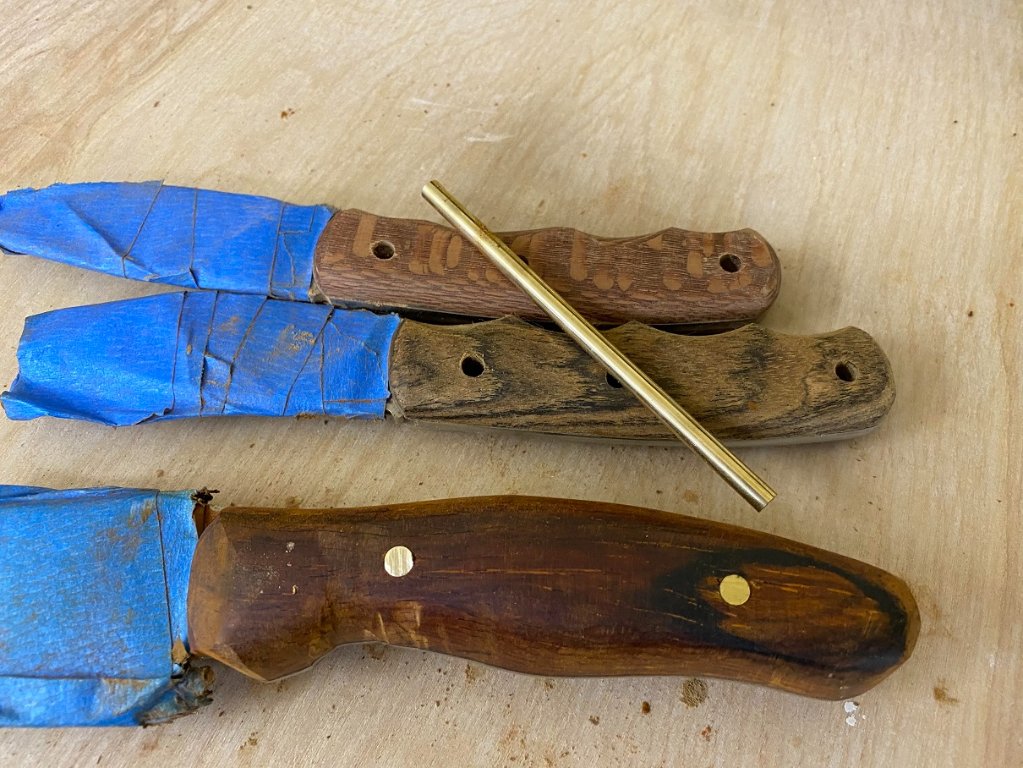

NOW, I felt I could do the work. I grabbed the assortment of brass rods and found the size that was slightly larger. 13/64. I got the bit and set up the drill press and reamed each of the eight holes to the proper size, VERY Carefully, taking my time. Then using a scribe, carefully marked the rod for each cut, clamped it in a vice and cut each pin to length, a fraction oversize. This way it can be glued in and sanded to flush.

brass pins c.jpg
brass pins c.jpg (173.86 KiB) Viewed 1020 times

You can see in the above picture the brass rod, the knife in the lower portion has the pins fitted, but not yet glued. The top two haven't been reamed on the drill press yet. I worked slowly but surely and got them all done. I had planned to glue them in place but after the job was done, my hand was telling me that detail work would have to wait. I'll glue them tomorrow, and sand them the next day. Or the day after. I am NOT going to rush this. They have been waiting a year, the job can take some time.

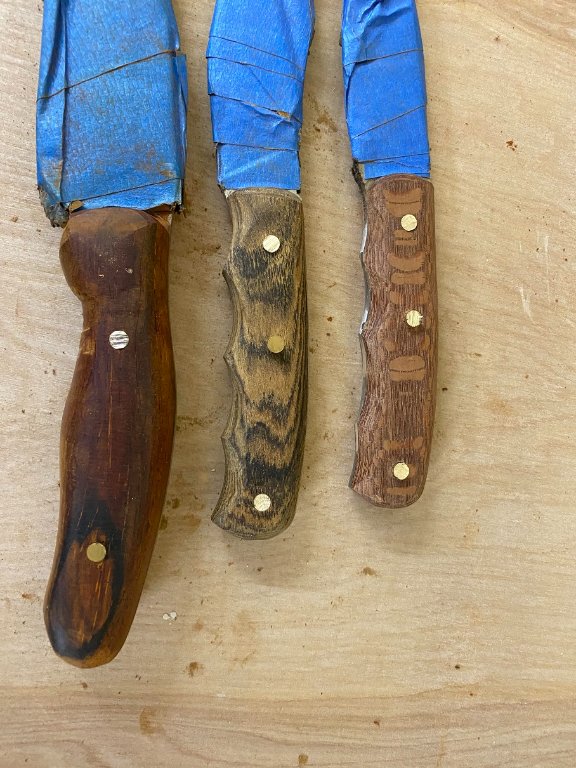

brass pins 2c.jpg
brass pins 2c.jpg (114.21 KiB) Viewed 1020 times

After they are glued in place, I'll sand them flush then move up in grits to get the final sanding and shaping done. They are far from finished. What you see are a pair of cocobolo knives and a curly cherry. I hope they turn out as beautiful as I'd hoped. Two were to be Christmas presents, and the tanto was to match grips for my 1911.
Then... sheaths. I can see if I can still use the leather working tools for carving and stamping. Hand lacing or sewing will be interesting.
;)
Last edited by BrokenolMarine on Sun Feb 13, 2022 5:37 pm, edited 1 time in total.
You can tell a lot about the character of a man...
by the way he treats those who can do nothing for him.

I don't look back at the things I can no longer do, I just look forward to the things I still can.

User avatar
BrokenolMarine
Ranch Foreman
Posts: 7475
Joined: Sat Nov 26, 2016 8:28 am
Location: South Central Oklahoma in the mountains
United States of America

Re: Finally Back In The Shop

Post by BrokenolMarine » Sun Feb 13, 2022 5:31 pm

I'll keep you posted, as slowly but surely I finish the project, or ruin it and strip the blanks and start over. :twisted:
You can tell a lot about the character of a man...
by the way he treats those who can do nothing for him.

I don't look back at the things I can no longer do, I just look forward to the things I still can.

User avatar
JEBar
Town Marshal / Deputy Admin
Posts: 20427
Joined: Sun Mar 20, 2016 10:58 pm
Location: central NC
United States of America

Re: Finally Back In The Shop

Post by JEBar » Sun Feb 13, 2022 7:19 pm

great to hear that Physical Therapy is working for you ... I have to start it in the morning .... looking forward to following your projects

User avatar
fortyshooter
Ranch Foreman
Posts: 7089
Joined: Sat Dec 09, 2017 10:37 am
Location: Va.
United States of America

Re: Finally Back In The Shop

Post by fortyshooter » Mon Feb 14, 2022 11:39 am

Nice work on those knives and you continue to heal!

User avatar
markiver54
Deputy Marshal
Posts: 11127
Joined: Sun Nov 04, 2018 11:49 am
Location: Biue Ridge Mountains, NC
United States of America

Re: Finally Back In The Shop

Post by markiver54 » Mon Feb 14, 2022 11:53 am

Great to hear you're back at it Jim! I'm sure they will turn out beautiful. Will be following your progress as you work and heal.
I'm your Huckleberry

User avatar
daytime dave
Administrator / Owner
Posts: 5961
Joined: Sun Mar 20, 2016 10:27 pm
Location: Upstate NY
United States of America

Re: Finally Back In The Shop

Post by daytime dave » Mon Feb 14, 2022 12:16 pm

I'm glad to see you are able to go into the shop and work again my friend. It's even better to hear that you are pacing yourself and listening to your hand and body and doing what you need to. (Not that I didn't think any differently) The handles look really good so far. I'm sure with your skill and patience they will come out beautifully.
I'm looking forward to the results.
Some days I'm Andy, most days I'm Barney........
Eaglescout, NRA Life Endowment member, BCCI Life Member

User avatar
Rifletom
Deputy Marshal
Posts: 4010
Joined: Tue Aug 21, 2018 11:26 pm
Location: California Territory
United States of America

Re: Finally Back In The Shop

Post by Rifletom » Mon Feb 14, 2022 12:29 pm

Glad to hear you're on the mend, and you sure seem to have the right attitude working. Nice to see you back in the shop.

Oldbrass
Cowboy
Posts: 1018
Joined: Mon Sep 07, 2020 9:53 pm
Location: Central South Carolina
United States of America

Re: Finally Back In The Shop

Post by Oldbrass » Mon Feb 14, 2022 3:40 pm

Glad to hear your back in the saddle, went thru that physical therapy last year when I had my neck fuzed.. getting moving doing things you like is the best thing ever.
30-30, Helping bad fisherman eat since 1895

zara_puppy
Cowhand
Posts: 265
Joined: Wed Nov 13, 2019 8:52 pm
United States of America

Re: Finally Back In The Shop

Post by zara_puppy » Mon Feb 14, 2022 11:10 pm

A good knife is hard to beat. I’ll be anxious to see these come along. These look really good.

User avatar
BrokenolMarine
Ranch Foreman
Posts: 7475
Joined: Sat Nov 26, 2016 8:28 am
Location: South Central Oklahoma in the mountains
United States of America

Re: Finally Back In The Shop

Post by BrokenolMarine » Tue Feb 15, 2022 12:26 pm

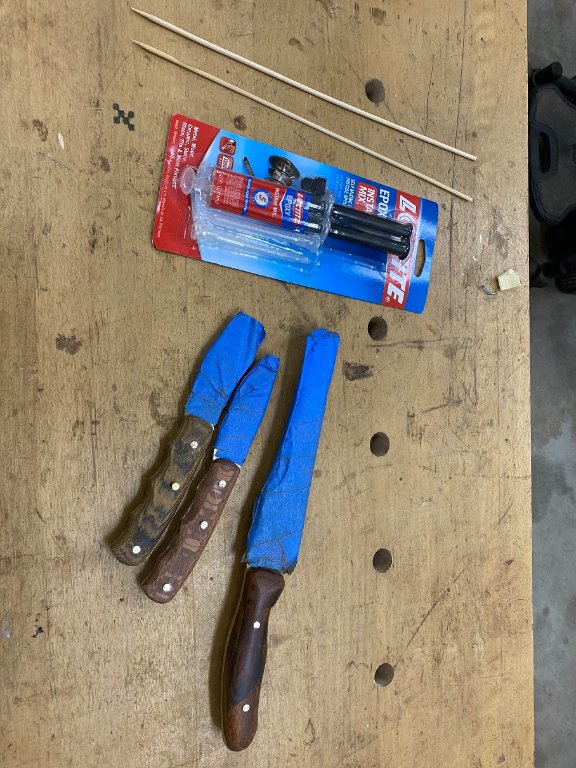

Back out in the shop on Monday to glue up the pins. Got the Epoxy out, and mixed a small amount, AFTER knocking out the eight pins and making sure to keep them in the proper order with the proper knives. :? After all, they were measured and cut for a certain hole in the certain blanks. ;) I used a couple bamboo skewers as my mixer and applicators to work with the five minute epoxy. The one thing I had forgotten in the year out of the shop was the smell of that stuff. :evil: I should have set up ventilation. Too late, just needed to work quickly and get OUT. :twisted:

gluing up pins c.jpg
gluing up pins c.jpg (123.67 KiB) Viewed 931 times

I got the epoxy mixed and then using the SHARP end of the skewer applied the epoxy inside the pin hole in the blank, then pushed the skewer thru the hole and coated the interior of the hole thoroughly. I carefully pushed the appropriate pin thru the hole, then insured it was centered in the hole with a bit of brass showing on each side. Once all holes were filled, I pushed the tape coated blade into the wooden vise at the end of the bench. The LAST thing I wanted to do was epoxy the knife to the bench. :roll: :(

I carefully, but quickly repeated the process with each blade blank until all eight pins were installed, and the three blanks were standing at attention at the end of the workbench, then rechecked the alignment, making minor adjustments until I was satisfied. Once that epoxy sets, there are NO adjustments. ;)

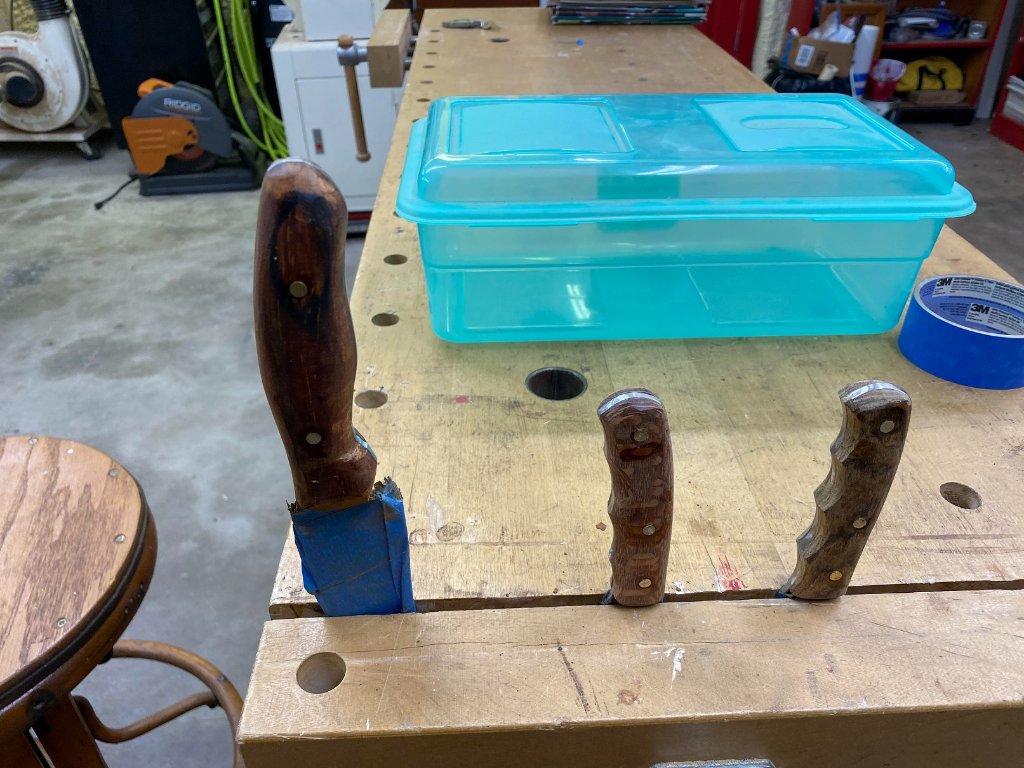

I left them to dry overnight.

to dry overnight c.jpg
to dry overnight c.jpg (151.07 KiB) Viewed 931 times
You can tell a lot about the character of a man...
by the way he treats those who can do nothing for him.

I don't look back at the things I can no longer do, I just look forward to the things I still can.

User avatar
BrokenolMarine
Ranch Foreman
Posts: 7475
Joined: Sat Nov 26, 2016 8:28 am
Location: South Central Oklahoma in the mountains
United States of America

Re: Finally Back In The Shop

Post by BrokenolMarine » Tue Feb 15, 2022 12:31 pm

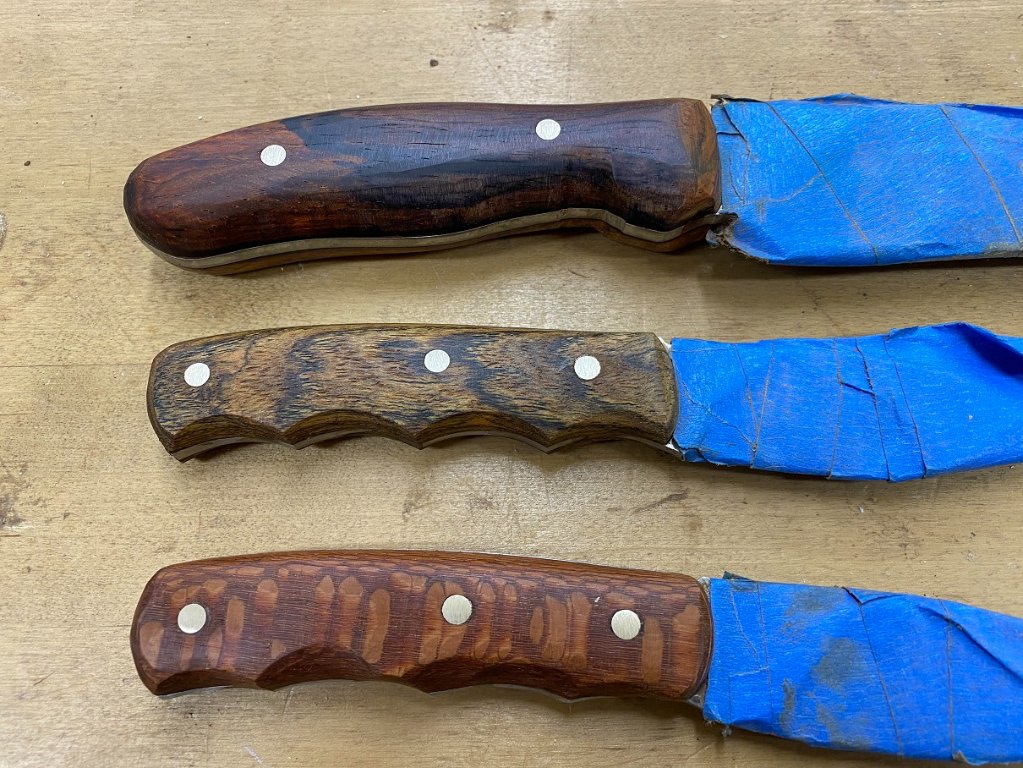

Today, I got out in the shop for an hour or so to sand down the pins flush and blend them into the scales. After a bit of work I was pretty happy with the result. The pins on the three knife blanks are blended flush, and although I'll be moving up in grits to do the final sanding, and working around the edges of the knives to insure the blanks are dressed... we are getting there. I can't use the belt sander on some areas, so strips of sandpaper and two handed buffing will be required. Probably 15 - 30 minute sessions with my bad left hand will be required. Don't know if I can handle much more than that. :D

pins sanded flush c.jpg
pins sanded flush c.jpg (207.24 KiB) Viewed 887 times

Looking pretty good with the blended brass pins now.
Won't be too long until I can remove the protective tape. :)
You can tell a lot about the character of a man...
by the way he treats those who can do nothing for him.

I don't look back at the things I can no longer do, I just look forward to the things I still can.

User avatar
daytime dave
Administrator / Owner
Posts: 5961
Joined: Sun Mar 20, 2016 10:27 pm
Location: Upstate NY
United States of America

Re: Finally Back In The Shop

Post by daytime dave » Tue Feb 15, 2022 2:07 pm

Looking good my friend.
Some days I'm Andy, most days I'm Barney........
Eaglescout, NRA Life Endowment member, BCCI Life Member

User avatar
BrokenolMarine
Ranch Foreman
Posts: 7475
Joined: Sat Nov 26, 2016 8:28 am
Location: South Central Oklahoma in the mountains
United States of America

Re: Finally Back In The Shop

Post by BrokenolMarine » Tue Feb 15, 2022 2:16 pm

Thanks Dave, but they will need a lot of detail work before I'm happy.
You can tell a lot about the character of a man...
by the way he treats those who can do nothing for him.

I don't look back at the things I can no longer do, I just look forward to the things I still can.

User avatar
daytime dave
Administrator / Owner
Posts: 5961
Joined: Sun Mar 20, 2016 10:27 pm
Location: Upstate NY
United States of America

Re: Finally Back In The Shop

Post by daytime dave » Tue Feb 15, 2022 2:35 pm

But after a year of being idle, they look G R E A T as Tony the tiger would say.
Some days I'm Andy, most days I'm Barney........
Eaglescout, NRA Life Endowment member, BCCI Life Member

User avatar
markiver54
Deputy Marshal
Posts: 11127
Joined: Sun Nov 04, 2018 11:49 am
Location: Biue Ridge Mountains, NC
United States of America

Re: Finally Back In The Shop

Post by markiver54 » Tue Feb 15, 2022 4:22 pm

They are coming along VERY nicely!
I'm your Huckleberry

Nam Vet
Cowhand
Posts: 317
Joined: Mon Mar 21, 2016 9:15 pm
Location: NC
United States of America

Re: Finally Back In The Shop

Post by Nam Vet » Tue Feb 15, 2022 8:29 pm

Looking forward to see finished knifes. Hope you heal fast and painless.
Semper Paratus

Happily married
DAV
MOPH
VVA
NRA
1st Inf. Div 1/16 Iron Rangers Mech Recon Plt.1968-69.

User avatar
BrokenolMarine
Ranch Foreman
Posts: 7475
Joined: Sat Nov 26, 2016 8:28 am
Location: South Central Oklahoma in the mountains
United States of America

Re: Finally Back In The Shop

Post by BrokenolMarine » Tue Feb 15, 2022 11:24 pm

I can't wait to see them either. :lol:
The curly cherry is a gift for my daughter.
The cocobolo tanto is mine, to go with the grips a forum member cut for my Match Grade 1911. :)

I may give the other to my son in law, or not. :roll:
You can tell a lot about the character of a man...
by the way he treats those who can do nothing for him.

I don't look back at the things I can no longer do, I just look forward to the things I still can.

User avatar
BrokenolMarine
Ranch Foreman
Posts: 7475
Joined: Sat Nov 26, 2016 8:28 am
Location: South Central Oklahoma in the mountains
United States of America

Re: Finally Back In The Shop

Post by BrokenolMarine » Mon Feb 21, 2022 3:10 pm

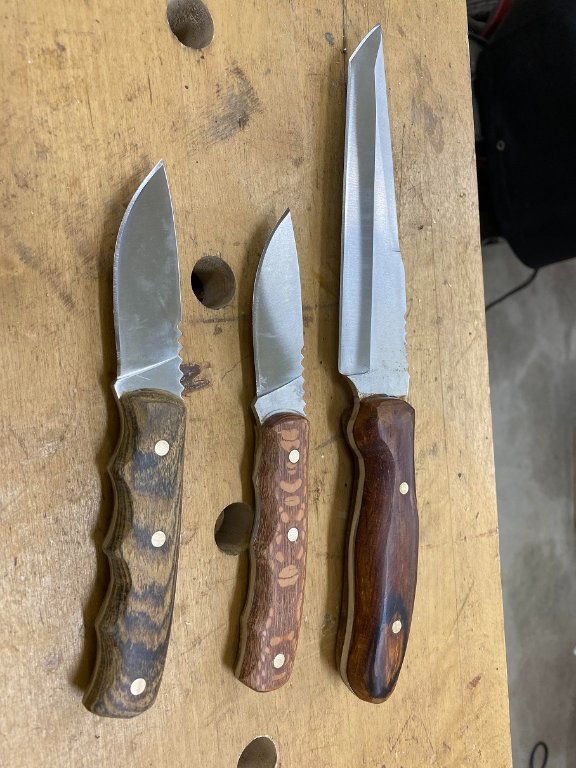

In the shop for a bit the last couple days. Yesterday I cut strips off the 60 grit and worked on the slots in the underside of the two smaller knives, and the underside of the front edge of the tanto. Today I cut strips off the 100 and 400 grit and polished what I had worked on until I was satisfied. Then using the belt sander, made a couple passes to smooth and blend with the 600 grit. Everything was looking good so I pulled the tape off the blades and wiped off the dust.

sanded c.jpg
sanded c.jpg (102.97 KiB) Viewed 844 times

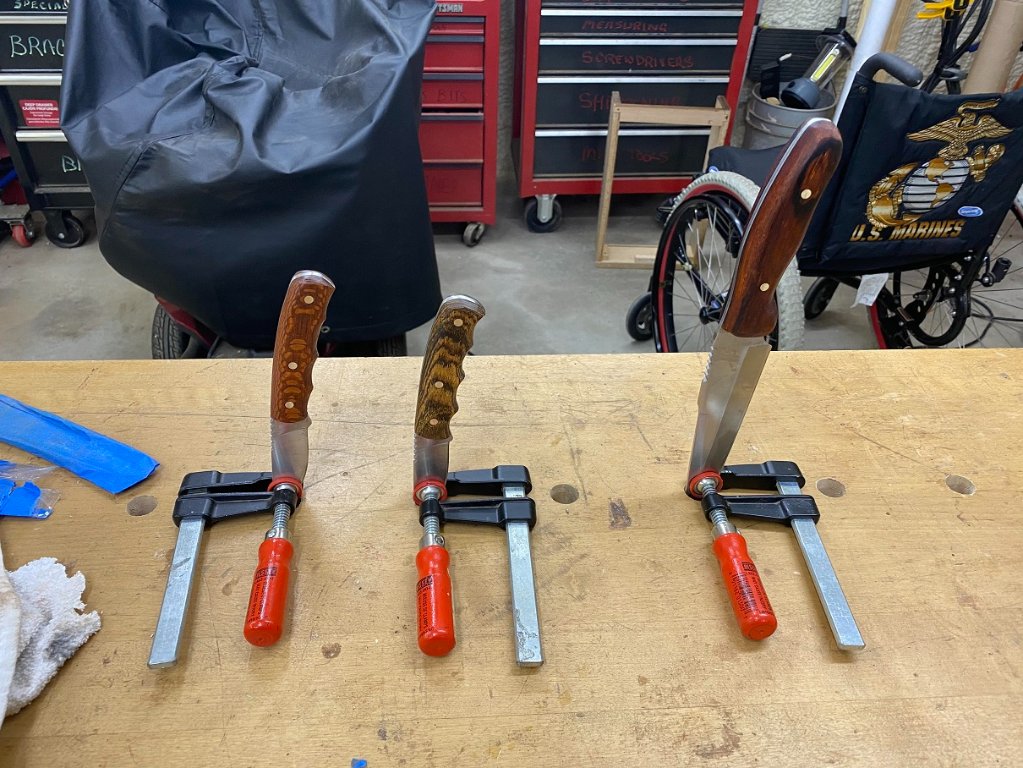

I was ready to apply the first coat of Watco oil. The Curly Cherry got a wipe down with Golden Oak.
The Small Cocobolo got Natural Watco Oil.
That dark cocobolo got wiped down with Medium walnut.

The oil will protect the wood and the chosen color will make the grain pop.

finish applied c.jpg
finish applied c.jpg (184.81 KiB) Viewed 844 times

They all got a small clamp on the end of the blade and placed vertically on the bench to dry.
They all will get a second wipedown with their Watco oil to insure deep protection.
Then beeswax coats and buffing.

So far they look pretty good.
You can tell a lot about the character of a man...
by the way he treats those who can do nothing for him.

I don't look back at the things I can no longer do, I just look forward to the things I still can.

User avatar
BrokenolMarine
Ranch Foreman
Posts: 7475
Joined: Sat Nov 26, 2016 8:28 am
Location: South Central Oklahoma in the mountains
United States of America

Re: Finally Back In The Shop

Post by BrokenolMarine » Mon Feb 21, 2022 3:11 pm

After they are done, Sheath Work.
Then... new knives with turquoise.
You can tell a lot about the character of a man...
by the way he treats those who can do nothing for him.

I don't look back at the things I can no longer do, I just look forward to the things I still can.

User avatar
markiver54
Deputy Marshal
Posts: 11127
Joined: Sun Nov 04, 2018 11:49 am
Location: Biue Ridge Mountains, NC
United States of America

Re: Finally Back In The Shop

Post by markiver54 » Mon Feb 21, 2022 5:04 pm

Excellent work Jim!
Those look great!
